Tap water Desalination Equipment 6Ph. (Transportable)

1) Water supply pump

Model: CDMF32-40

Power: 7.5KW

Flow：35m3/h

Material: 316 Duplex Steel

2pcs 1 work 1 standby

2) Flocculant dosing pump

Dosing pump model: GM0025

PE dosing box: 500L

Configure the blender

1set Milton Roy

3) Multi-media filter

Size: φ1600×2100mm

Material: FRP

Fully automatic valve control

Pure white particle quartz sand

*Remark:

Quartz sand does not need

to be replaced, only need

backwashing regularly. 2sets JHH

4 ) Security filter

Size: φ250×1200mm

Material: FRP

10µm large flux filter element

5µm large flux filter element

*Remark:

According to the quality of

input water, it should be replaced

once for every 1- 2 months, 2 pieces

each time, 1 piece of 10um and 1

piece of 5um each, 24 pieces total

for a year, 12 pieces of 10um and

5um each.

2sets JHH

5) Antiscalant dosing pump

Dosing pump model: PD06

PE dosing box: 120L

1set Milton Roy

6) High-pressure pump

Model: APP

Power: 37 KW

Material: 2507 Duplex Steel

1pc Danfoss

7) Energy recovery system

Model: HP85 PX140

Power: 5.5KW

Material: Stainless Steel

1set ERI

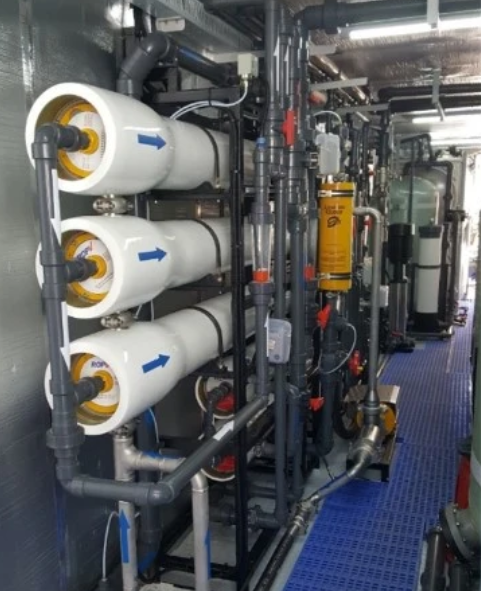

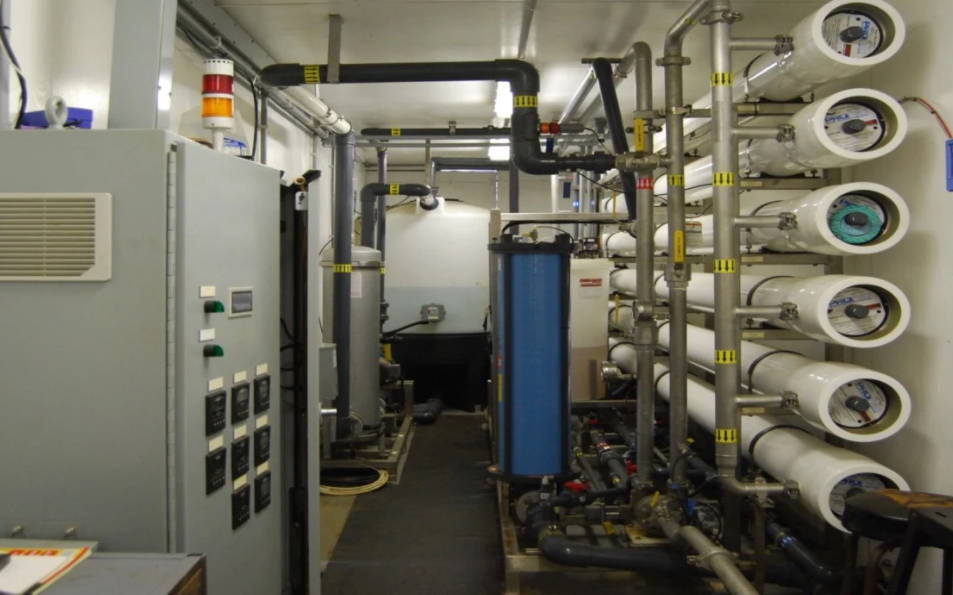

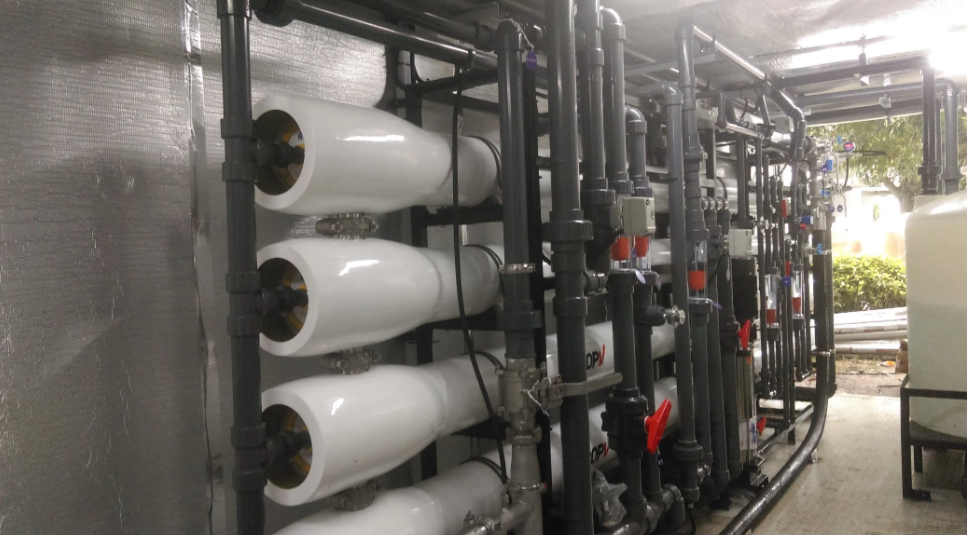

8) Reverse osmosis system

US imported Dow SW30HRLE-400

membrane element *30pcs, 1000PSI FRP 8 inches pressure

vessels *5pcs

1set JHH

9) Cleaning system

Cleaning tank: 2000L

Cleaning filter: 259X1000

Cleaning pump: CDL8-40 1.5KW

1set JHH

10) Valve and piping system

High-pressure pipelines are made of

2205 duplex stainless steel and

high-pressure hoses, low-pressure

pipelines are made of PPR and

UPVC pipelines;

High-pressure valve is made of

SS316 stainless steel, low-pressure

valve is made of UPVC.

1batch

JHH

11) Instrumentation and Control System

Schneider components, liquid crystal

digital display conductivity meter, plastic tube display flow meter, online pressure gauge, pressure

sensor control. Full-automatic PLC control system, high-pressure pump, frequency

converter control of energy recovery

system inverter. (Frequency

converter brand: Zhongyuan Power)

Automatic backwash cleaning after

shutdown.

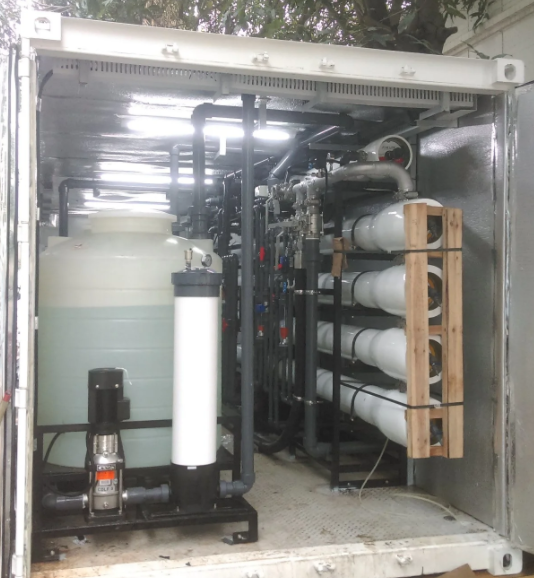

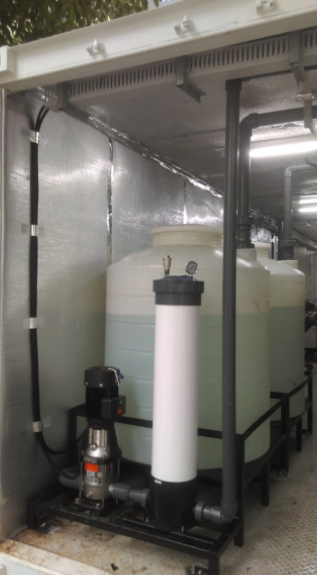

12) Container

One 20-feet standard container and one 40-feet standard container.

The container is equipped with double doors and the bottom is

equipped with anti-skid steel plates for reinforcement and anti-corrosion

treatment. The interior is equipped with insulation measures, lighting, switch

socket distribution box, isolated electrical control room, and air

conditioning.

2pcs JHH

Configuration Instructions: The system configuration includes only the equipment part, not including the water tank that cannot be put in the container or the water intake system. It needs to be equipped with a seawater pump, raw water tank with volume 10tons and fresh water tank with volume 10tons additionally. We already set the liquid level switch signal. Control system reserves the raw water tank and fresh water tank liquid level switch input signal, which can be fully automatic control according to the liquid level switch signal.
